MAMRY minesweepers (project 207M, 1992 - 1994)
Mamry 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Mamry | 643 | Stocnia Marynarki Wojennej, Gdynia | 20.9.1991 | 25.9.1992 | in service (2019) | ||
| Wigry | 644 | Stocnia Marynarki Wojennej, Gdynia | 28.11.1992 | 14.5.1993 | in service (2019) | ||
| Śniardwy | 645 | Stocnia Marynarki Wojennej, Gdynia | 20.6.1993 | 28.1.1994 | in service (2019) | ||
| Wdzydze | 646 | Stocnia Marynarki Wojennej, Gdynia | 24.6.1994 | 2.12.1994 | in service (2019) | ||
| 647 | --- | --- | cancelled 1994 |
|
Displacement standard, t |
210 |
|
Displacement full, t |
225 |
|
Length, m |
36.5 pp 38.5 oa |
|
Breadth, m |
7.35 |
|
Draught, m |
1.78 hull |
|
No of shafts |
2 |
|
Machinery |
2 M-401A diesels |
|
Power, h. p. |
1875 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1100(9) |
|
Armament |
1 x (2 Strela-2M SAM + 2 - 23/87) ZU-23-2MR Wrobel-2MR (6 Strela-2M), 2 DCR (12), 6 - 24 mines, MMTK-1M mechanical, TEM-PE-1M2 magnetic, MTA-2 acoustic minesweeping gear, decompression chamber |
|
Electronic equipment |
SRN-401XTA radar, SHL-100 Flaming-A, SHL-200 sonars |
|
Complement |
49 |
Project history: Modified Gopło class (project 207M) with longer pilothouse, decompression chamber and modified minesweeping equipment. Low-magnetic field minesweepers with GRP hull.
Modernizations: None.
Naval service: No significant events.

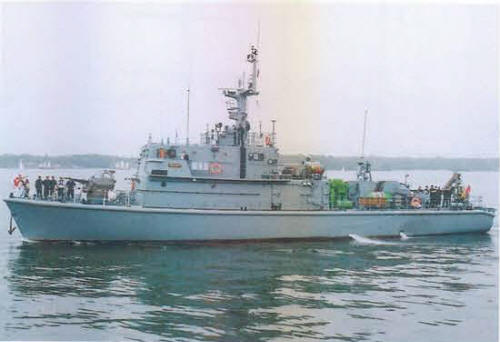

Śmiardwy 2007
