Azevia 1941
Azevia 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Azevia | A, 1956- P595 | ER de Lisboa | 1941 | 1941 | discarded 1975 | ||
| Bicuda | B, 1956- P596 | ER de Lisboa | 1941 | 1941 | discarded 1976 | ||
| Corvina | C, 1956- P597 | ER de Lisboa | 1941 | 1941 | discarded 1975 | ||
| Dourada | D, 1956- P598 | ER de Lisboa | 1942 | 1942 | discarded 1975 | ||
| Espadilha | E, 1956- P599 | ER de Lisboa | 1942 | 1942 | discarded 1971 | ||
| Fataça | F | ER de Lisboa | 1942 | 1942 | wrecked 22.1.1949 |
|
Displacement standard, t |
230 |
|
Displacement full, t |
270 |
|
Length, m |
42.6 |
|
Breadth, m |
6.50 |
|
Draught, m |
2.10 |
|
No of shafts |
2 |
|
Machinery |
Azevia, Bicuda: 2 MAN diesels others: 2 Sulzer diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil 25 |
| Endurance, nm(kts) | 3700(11) |
|
Armament |
2 x 2 - 25/60 M1938 |
|
Complement |
37 |
Project history: Fishery protection patrols, really large patrol boats.
Modernizations: 1944-1945, all: - 2 x 2 - 25/60; + 2 x 1 - 20/70 Oerlikon Mk II/IV, 2 x 1 - 7.7/87, 2 DCT
1960s,all survived: + radar
Naval service: Fataça wrecked on rocks 22.1.1949.

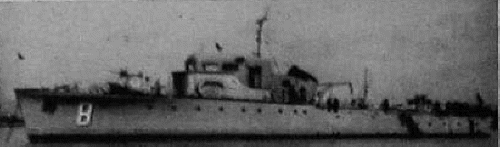

Bicuda 1953
