Lagos 1933
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Faro | ER de Lisboa | 1927 | 1928 | discarded 1960 | |||
| Lagos | ER de Lisboa | 1930 | 1930 | discarded 1960 |
|
Displacement standard, t |
295 |
|
Displacement full, t |
300 |
|
Length, m |
36.6 pp 39.8 oa |
|
Breadth, m |
6.70 |
|
Draught, m |
3.20 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 Yarrow boiler |
|
Power, h. p. |
650 |
|
Max speed, kts |
13 |
|
Fuel, t |
oil 42 |
| Endurance, nm(kts) | 2000(7.5) |
|
Armament |
2 x 1 - 47/40 3pdr Hotchkiss Mk I |
|
Complement |
52 |
Project history: Fishery protection patrols.
Modernizations: None.
Naval service: No significant events.

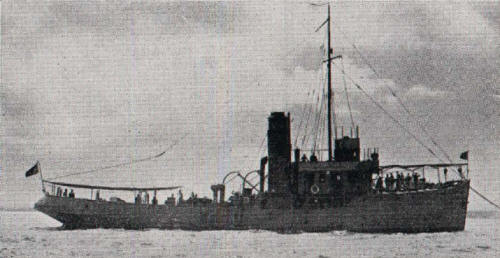

Lagos 1933
