K-182 nuclear powered ballistic missile submarines (project 667BD) (1975)
K-92 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| К-182 [K-182], 11.1977- К-182 60 лет Великого Октября [K-182 60 Let Velikogo Oktyabria], 6.1992- К-182 [K-182] | 341 | Northern Yd, Severodvinsk | 10.4.1973 | 12.1.1975 | 30.9.1975 | stricken 3.1995 | |
| К-92 [K-92] | 342 | Northern Yd, Severodvinsk | 9.7.1973 | 3.5.1975 | 17.12.1975 | stricken 3.1995 | |
| К-193 [K-193] | 353 | Northern Yd, Severodvinsk | 3.9.1973 | 1.7.1975 | 30.12.1975 | stricken 3.1995 | |
| К-421 [K-421] | 354 | Northern Yd, Severodvinsk | 30.11.1973 | 1.7.1975 | 30.12.1975 | stricken 3.1995 |
|
Displacement standard, t |
|
|
Displacement normal, t |
10500 / 13600 |
|
Length, m |
155.0 |
|
Breadth, m |
11.9 |
|
Draught, m |
8.60 |
|
No of shafts |
2 |
|
Machinery |
2 TZA-635 geared steam turbines units, 2 OK-700 nuclear reactors |
|
Power, h. p. |
40000 |
|
Max speed, kts |
14 / 24 |
|
Fuel, t |
nuclear |
|
Endurance, nm(kts) |
practically unlimited |
|
Armament |
16 R-29D SLBM (16 R-29D (4K75D)), 4 - 533 TT (bow, 16), 2 - 400 TT (bow, 4) |
|
Electronic equipment |
MRK-50 Kaskad radar, MGK-100 Kerch' sonar, MRP-10M Zaliv-P ECM suite, MG-44 Korund-1 decoys, Almaz-BD CCS |
|
Complement |
135 |
|
Diving depth operational, m |
320 |
Project history: This was a lengthened ('D' in the project number) 'pr. 667B' carrying four more missiles; underwater speed fell to 24kts.
Modernizations: None.
Naval service: No significant events.

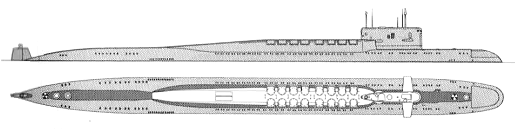

Project 667BD 1979
