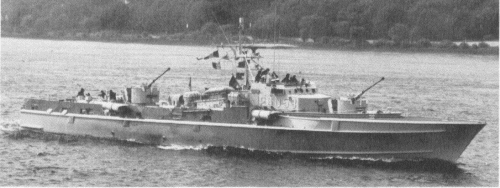

Dammam 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| دمم [Dammam] | Lürssen, Vegesack, West Germany | 1969 | deleted 1993 | ||||
| خبر [Khabar] | Lürssen, Vegesack, West Germany | 1969 | deleted 1993 | ||||
| مكه [Maccah] | Lürssen, Vegesack, West Germany | 1969 | deleted 1993 |
|
Displacement standard, t |
160 |
|
Displacement full, t |
190 |
|
Length, m |
39.8 wl 42.6 oa |
|
Breadth, m |
7.10 |
|
Draught, m |
2.40 |
|
No of shafts |
4 |
|
Machinery |
4 Maybach diesels |
|
Power, h. p. |
12000 |
|
Max speed, kts |
42 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(30) |
|
Armament |
2 x 1 - 40/70 Bofors 350, 4 - 533 TT |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
33 |
Project history: German Jaguar class (Type 141), ordered in 1968.
Modernizations: None.
Naval service: No significant events.
1974
