Al Jouf 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| الجوف [Al Jouf] | 351, 2014- | Blohm & Voss, Hamburg, Germany | 30.3.1988 | 10.3.1989 | 15.6.1989 | in service (2019) | |
| طرائف [Turaif] | 352, 2014- 994 | Blohm & Voss, Hamburg, Germany | 27.4.1988 | 4/1989 | 15.6.1989 | in service (2019) | |
| هائل [Hail] | 353 | Blohm & Voss, Hamburg, Germany | 1.8.1988 | 1989 | 20.8.1989 | in service (2019) | |
| نجران [Najran] | 354 | Blohm & Voss, Hamburg, Germany | 5.8.1988 | 1989 | 20.8.1989 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
210 |
|
Length, m |
36.2 pp 38.6 oa |
|
Breadth, m |
8.00 |
|
Draught, m |
1.90 |
|
No of shafts |
3 |
|
Machinery |
3 MTU 16V538 TB93 diesels |
|
Power, h. p. |
11260 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
1900(15) |
|
Armament |
2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca RM1290A, Decca S1690 radars |
|
Complement |
20 |
Project history: Ordered in 1986. Steel hull, aluminium superstructure. Have firefighting monitor.
Modernizations: None.
Naval service: No significant events.

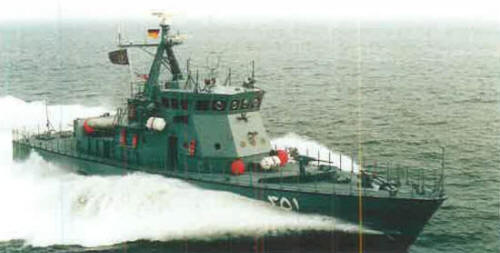

Al Jouf 1989
© Ivan Gogin, 2019
