| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Panglima | P68 | United Engineers, Singapore | 14.1.1956 | 5.1956 | to Malaysia 1963-1967 (Panglima), deleted 1995 |
|
Displacement standard, t |
119 |
|
Displacement full, t |
134 |
|
Length, m |
33.5 pp 35.7 oa |
|
Breadth, m |
6.10 |
|
Draught, m |
1.50 |
|
No of shafts |
2 |
|
Machinery |
2 12-cyl Paxman YHAXM diesels |
|
Power, h. p. |
1100 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil 15 |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 40/60 Mk 7, 1 x 1 - 20/70 Mk 7 |
|
Electronic equipment |
type 978 radar |
|
Complement |
15 |
Project history: Built to the design of the British 'Ford' class seaward defence boat but without ASW capability.
Modernizations: None.
Naval service: No significant events.

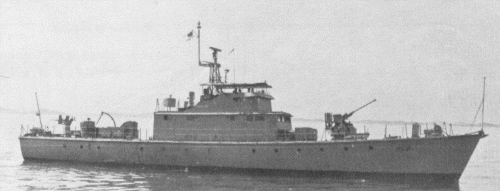

Panglima 1975
