| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ayer Chawan | RPL54 | Vosper Thornycroft, Singapore | 1968 | deleted 1994 | |||
| Ayer Merban | RPL55 | Vosper Thornycroft, Singapore | 1968 | deleted 1994 | |||
| RPL56 | Vosper Thornycroft, Singapore | 1969 | deleted 1995 | ||||
| RPL57 | Vosper Thornycroft, Singapore | 1969 | deleted 1995 |
|
Displacement standard, t |
60 |
|
Displacement full, t |
150 |
|
Length, m |
27.0 |
|
Breadth, m |
6.90 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
650 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
300(10) |
|
Armament |
none |
| Military load | 1 tank or 40 t of cargo |
|
Electronic equipment |
none |
|
Complement |
9 |
Project history: Logistic/landing craft.
Modernizations: None.
Naval service: No significant events.

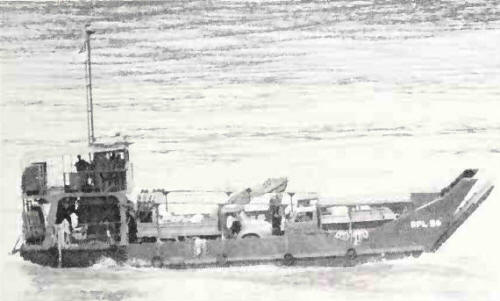

Ayer Chawan 1989
