Bedok 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Bedok | M105 | Karlskronavarvet, Karlskrona, Sweden | 17.10.1991 | 24.6.1993 | 7.10.1995 | in service (2019) | |
| Kallang | M106 | Karlskronavarvet, Karlskrona, Sweden // STM, Jurong | 1992 | 29.1.1994 | 7.10.1995 | in service (2019) | |
| Katong | M107 | Karlskronavarvet, Karlskrona, Sweden // STM, Jurong | 1992 | 8.4.1994 | 7.10.1995 | in service (2019) | |
| Punggol | M108 | Karlskronavarvet, Karlskrona, Sweden // STM, Jurong | 1992 | 16.7.1994 | 7.10.1995 | in service (2019) |
|
Displacement standard, t |
315 |
|
Displacement full, t |
360 |
|
Length, m |
43.2 pp 47.5 oa |
|
Breadth, m |
9.60 |
|
Draught, m |
2.30 |
|
No of shafts |
2 Voith-Schneider vertical cycloidal propellers |
|
Machinery |
4 Saab-Scania DSI-14 diesels |
|
Power, h. p. |
1440 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(12) |
|
Armament |
1 x 1 - 40/70 SAK40/48 (315), 4 x 1 - 12.7/90, 2x PAP-104 Mk 5 USV, mechanical, magnetic, 2x acoustic minesweeping gear, decompression chamber |
|
Electronic equipment |
DB2000 radar, 9LV100 e/o system, TSM 2022 sonar, Shield Mk III decoy RL, Ibis V (TSM 2061) CCS |
|
Complement |
31 |
Project history: Swedish Landsort class with differed equipment. GRP hull. Hulls for three ships were built in Sweden and outfitted in Singapore.
Modernizations: 2009-2014, all: - 1 x 1 - 40/70; + 1 x 1 - 25/75 Mk 38, 2x K-Ster USV, DUBM-44 sonar
Naval service: No significant events.

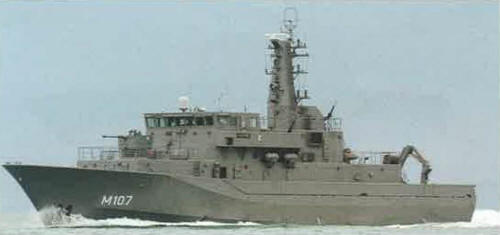

Katong 2009
