Names |
P480-485 |
|
Builders |
Trinity Marine, New Orleans, USA: P480-485 |
|
Commissioned |
1997: P480-485 |
|
Losses |
P482 (Tamil Tigers 2000) |
|
Transfers |
None |
|
Discarding |
in service (2019): P480, 481, 483-485 |
|
Displacement standard, t |
57 |
|
Displacement full, t |
68 |
|
Length, m |
25.0 |
|
Breadth, m |
5.33 |
|
Draught, m |
1.32 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 12V396 TE94 diesels |
|
Power, h. p. |
4570 |
|
Max speed, kts |
47 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
600(17) |
|
Armament |
2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/79, 2 x 1 - 7.6/90 |
|
Sensors |
Raytheon R1210 radar |
|
Complement |
12 |
Project history: Aluminium construction.
Modernizations: none.
Naval service: No significant events.

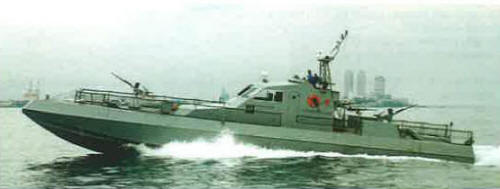

P480 1997
© Ivan Gogin, 2019
