No21 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| - | 21 | 341 Yd, Rybinsk, USSR | 1960-66 // 1966 | sunk 6.10.1973 | |||
| 21 | 341 Yd, Rybinsk, USSR | 1960-67 // 1973 | in service (2020) | ||||
| - | 22 | 341 Yd, Rybinsk, USSR | 1960-66 // 1966 | sunk 6.10.1973 | |||
| 22 | 341 Yd, Rybinsk, USSR | 1960-67 // 1973 | in service (2020) | ||||
| - | 23 | 341 Yd, Rybinsk, USSR | 1960-67 // 1973 | in service (2020) | |||
| - | 24 | 341 Yd, Rybinsk, USSR | 1960-67 // 1973 | in service (2020) | |||
| - | 25 | 341 Yd, Rybinsk, USSR | 1960-67 // 1973 | in service (2020) | |||
| - (ex-R-268) | 26 | 341 Yd, Rybinsk, USSR | 1960-67 // 1973 | in service (2020) |
|
Displacement standard, t |
184 |
|
Displacement full, t |
226 |
|
Length, m |
38.6 |
|
Breadth, m |
7.60 |
|
Draught, m |
1.84 |
|
No of shafts |
3 |
|
Machinery |
3 M-504B diesels |
|
Power, h. p. |
15000 |
|
Max speed, kts |
42 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1800(14) |
|
Armament |
4 x 1 P-15/P-15T SSM (4 P-15/P-15T), 2 x 2 - 30/71 AK-230 |
|
Sensors |
MR-101 Rangout, MR-104 Rys' radars |
|
Complement |
28 |
Project history: Soviet Project 205 FAC.
Modernizations: None.
Naval service: No21 and 22 were sunk 6.10.1973 off Latakia by Israeli FAC Garash. Real operation status of other craft is now doubtful.

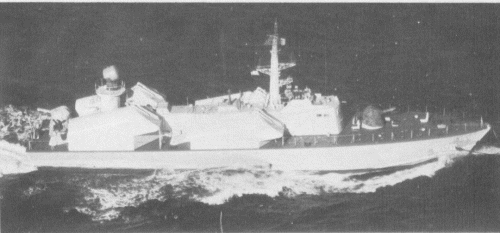

1972
