Al Assari 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| الحراسة [Al Hirasa] (ex-ÑÊÐ-95 [SKR-95]) | 11, 2.1976- 1-508 | 39 | Khabarovsk SYd, USSR | 10.3.1967 | 15.5.1968 | 27.9.1968 // 5.1975 | sunk as target 3.2018 |
| الساري [Al Assari] (ex-ÑÊÐ-94 [SKR-94]) | 12, 2.1976- 2-508 | 40 | Khabarovsk SYd, USSR | 1967 | 1968 | 31.10.1968 // 12.1975 | sunk as target 15.4.2018 |
|
Displacement standard, t |
1000 |
|
Displacement full, t |
1160 |
|
Length, m |
82.3 |
|
Breadth, m |
9.20 |
|
Draught, m |
2.93 mean 5.96 max |
|
No of shafts |
3 |
|
Machinery |
CODAG, 2 M-2BE gas turbines + 1 61B-2 diesel |
|
Power, h. p. |
29400 (24000+5400) |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel / gas turbine oil |
|
Endurance, nm(kts) |
1800(14) |
|
Armament |
2 x 2 - 76/59 AK-726, 1 x 3 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 DCR, 22 mines |
|
Sensors |
Fut-N, Fut-B, Don radars, MG-312IE Titan, MG-311 Vychegda sonars, Bizan'-4B ECM suite |
|
Complement |
106 |
Project history: Soviet export project 159AE.
Modernizations: None.
Naval service: No significant events.

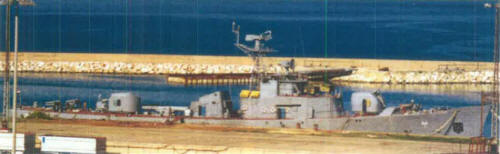

Al Hirasa 2001
