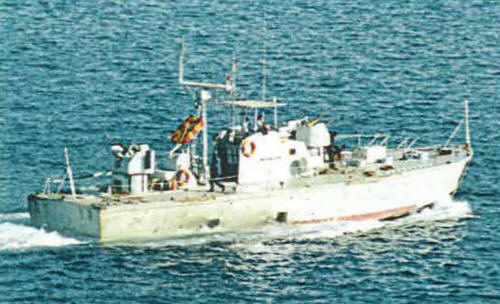

JW9841 1980
|
Names |
JW9841, 9842 JW9843, 9844, late 2000s- P43, 44 |
|
Builders |
Hudung SY, Shanghai, China: JW9841-9844 |
|
Completed |
1975: JW9841-9844 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1998: JW9841, 9842 in service (2020): P43, 44 |
|
Displacement standard, t |
39 |
|
Displacement full, t |
46 |
|
Length, m |
22.5 |
|
Breadth, m |
3.80 |
|
Draught, m |
1.15 |
|
No of shafts |
3 |
|
Machinery |
3 M-50F-4 diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
50 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
500(30) |
|
Armament |
2 x 2 - 14.5/93, 2 - 533 TT |
|
Sensors |
type 756 radar |
|
Complement |
11 |
Project history: Chinese project 026 boats without hydrofoils.
Modernizations: None.
Naval service: No significant events.
