| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| ต.81 [Tor 81] | 81 | Silkline, Pranburi | 4.8.1999 | in service (2019) | |||
| ต.82 [Tor 82] | 82 | Silkline, Pranburi | 9.12.1999 | in service (2019) | |||
| ต.83 [Tor 83] | 83 | Silkline, Pranburi | 27.10.2000 | in service (2019) |
|
Displacement standard, t |
110 |
|
Displacement full, t |
120 |
|
Length, m |
28.0 pp 30.1 oa |
|
Breadth, m |
6.30 |
|
Draught, m |
1.70 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V200 TE90 diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil 24 |
|
Endurance, nm(kts) |
1300(15) |
|
Armament |
1 x 1 - 40/60 Mk 3, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Sperry SM5000 radar |
|
Complement |
28 |
Project history: First 3 were ordered in 1996, 15 more planned were never ordered due to bankruptcy of shipbuilder. Designed and constructed in partnership with ASC, ASC design PC30.
Modernizations: None.
Naval service: No significant events.

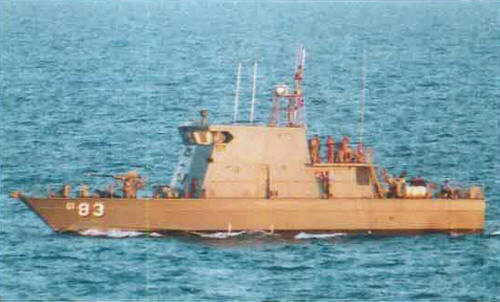

Tor 83 2004
