| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| ต.994 [Tor 994] | 994 | Naval D Yd, Bangkok | 11.7.2011 | 26.9.2011 | in service (2019) | ||
| ต.995 [Tor 995] | 995 | Marsun, Bangkok | 11.7.2011 | 26.9.2011 | in service (2019) | ||
| ต.996 [Tor 996] | 996 | Marsun, Bangkok | 11.7.2011 | 26.9.2011 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
215 |
|
Length, m |
41.5 |
|
Breadth, m |
7.20 |
|
Draught, m |
1.85 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V4000 M90 diesels |
|
Power, h. p. |
7400 |
|
Max speed, kts |
29.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(13) |
|
Armament |
1 x 1 - 30/80 DS-30B, 1 x 1 - 12.7/90 |
|
Electronic equipment |
Sperry, Furuno radars, Mirador e/o system, TACTICOS CCS |
|
Complement |
30 |
Project history: Enlarged version of T991 class, ordered in 2008. Steel hull with aluminium superstrusture.
Modernizations: None.
Naval service: No significant events.

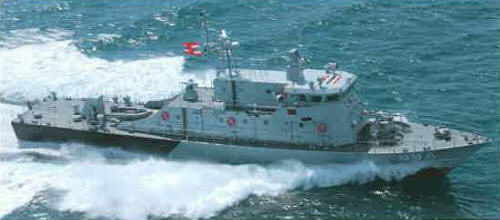

Tor 994 2012
