Rattanakosin 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| รัตนโกสินทร์ [Rattanakosin] | 1, 1992- 441 | Tacoma Boat, USA | 6.2.1984 | 21.3.1986 | 26.9.1986 | in service (2019) | |
| สุโขทัย [Sukhotai] | 2, 1992- 442 | Tacoma Boat, USA | 26.3.1984 | 20.7.1986 | 19.2.1987 | in service (2019) |
|
Displacement standard, t |
840 |
|
Displacement full, t |
960 |
|
Length, m |
76.8 |
|
Breadth, m |
9.55 |
|
Draught, m |
2.44 hull |
|
No of shafts |
2 |
|
Machinery |
2 MTU 20V1163 TB83 diesels |
|
Power, h. p. |
14730 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(16) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84A), 1 x 8 Albatros SAM (24 Aspide), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 OTO-Breda Compact, 2 x 1 - 20/90 GAM-B01, 2 x 3 - 324 Mk 32 mod.5 TT (6 Stingray) |
|
Electronic equipment |
Decca 1226, ZW-06, DA-05, WM-25, LIROD-8 radars, DSQS-21C sonar, Newton ECM suite, Dagaie decoy RL, Mini-SADOC CCS |
|
Complement |
140 |
Project history: US PFMM Mk 16 class. Plans to build a third ship in Thailand were canceled. May be used as flagships for attack craft squadrons.
Modernizations: None.
Naval service: No significant events.

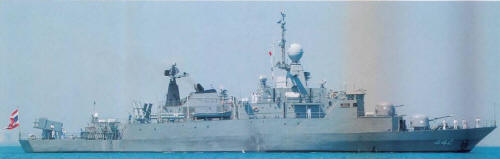

Sukhotai 2008
