Mataphon 1947
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| ทฟะฟย้นื [Mataphon] (ex-LCT1260) | 8, 1992- 761 | Quincy Bargebuiders, USA | 29.7.1944 | 9.1944 // 10.1946 | stricken 1984, recommissioned 1993, stricken 2011 | ||
| ราวี [Rawi] (ex-LCT800) | 9, 1992- 762 | Mount Vernon Bridge, USA | 14.6.1944 | 6.1944 // 10.1946 | stricken 1984, recommissioned 1993, stricken 2011 | ||
| หมู่เกาะอาดัง [Adang] (ex-LCT861) | 10, 1992- 763 | Darby Products, Kansas City, USA | 1.1944 | 15.2.1944 | 2.1944 // 1946 | stricken 1984, recommissioned 1993, stricken 2011 | |
| เภตรา [Phetra] (ex-LCT1089) | 11, 1992- 764 | Quincy Bargebuilders, USA | 10.5.1944 | 6.1944 // 1948 | stricken 1984, recommissioned 1993, stricken 2011 | ||
| เกาะเหลื่อม [Khorum] (ex-LCT904) | 12, 1992- 765 | Missouri Valley Bridge, Evansville, USA | 4.1944 | 13.5.1944 | 5.1944 // 1947 | stricken 1984, recommissioned 1993, stricken 2011 | |
| ตะลิบง [Talibong] (ex-LCT753) | 13, 1992- 766 | Quincy Bargebuilders, USA | 30.3.1944 | 5.1944 // 1947 | stricken 1984, recommissioned 1993, stricken 2011 |
|
Displacement standard, t |
160 |
|
Displacement full, t |
309 - 320 |
|
Length, m |
32.0 wl 36.3 oa |
|
Breadth, m |
9.96 |
|
Draught, m |
at landing: 1.09 fore, 1.22 aft |
|
No of shafts |
3 |
|
Machinery |
3 Grey Marine diesels |
|
Power, h. p. |
675 |
|
Max speed, kts |
8 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
700 (7) |
|
Armament |
2 x 1 - 20/70 Mk 4 |
| Military load |
4 medium or 3 heavy tanks or 150 t of cargo |
| Complement | 13 |
Project history: Former USN LCT(6)-type craft.
Modernizations: 1980s, all: - 2 x 1 - 20/70; + 2 x 2 - 20/70 Mk 24, Raytheon 1500B (SPS-53) radar
.Naval service: Mostly served as ferries on Chao Phraya river. All were stricken in 1984 but rehabilitated for further service by 1993.

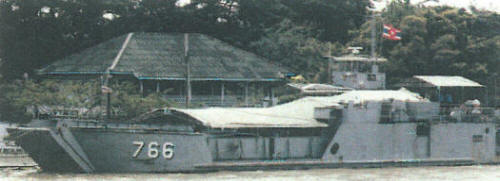

Talibong 2001
