| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| ทองแก้ว [Thong Kaeo] | 7, 1992- 771 | Naval DYd, Bangkok | 23.12.1982 | in service (2019) | |||
| ทองหลาง [Thong Lang] | 8, 1992- 772 | Naval DYd, Bangkok | 19.4.1983 | in service (2019) | |||
| วังนอก [Wang Nok] | 9, 1992- 773 | Naval DYd, Bangkok | 16.9.1983 | in service (2019) | |||
| วังใน [Wang Nai] | 10, 1992- 774 | Naval DYd, Bangkok | 11.11.1983 | in service (2019) |
|
Displacement standard, t |
200 |
|
Displacement full, t |
396 |
|
Length, m |
41.0 |
|
Breadth, m |
9.00 |
|
Draught, m |
2.10 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors Detroit Diesel 16V71N diesels |
|
Power, h. p. |
1400 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1200(10) |
|
Armament |
2 x 1 - 20/90 GAM-B01 |
|
Military load |
3 tanks or 143 t cargo |
|
Electronic equipment |
Decca radar |
|
Complement |
32 |
Project history: Based on US LCU1626 class design. 30.5x5.5m vehicle deck. Fifth ship was ordered in 1984 but never completed.
Modernizations:
None.Naval service: No significant events.

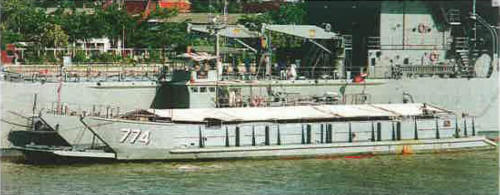

Wang Nai 1997
