| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| ดำรงราชานุภาพ [Damrong Rachanuphat] | 1802 | Schiffwerft Hameln, West Germany | 3.1.1969 | in service (2019) | |||
| ลพบุรีรามาส [Lopburi Ramas] | 1803 | Schiffwerft Hameln, West Germany | 10.12.1972 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
430 |
|
Length, m |
56.7 |
|
Breadth, m |
8.10 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
4 MTU diesels |
|
Power, h. p. |
4400 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10 |
| Electronic equipment | Decca 1226, nav. radars |
|
Complement |
45 |
Project history: Large patrol craft.
Modernizations: 1990s, new armament consisted of: 1 x 2 - 30/75 GCM-A03, 2 x 1 - 20/90 GAM-B01
Naval service: No significant events.

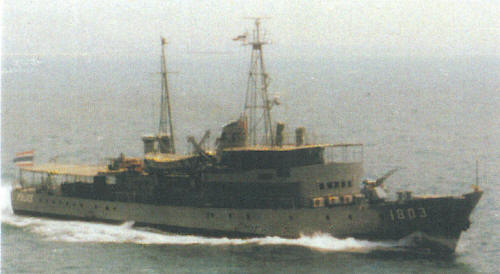

Lopburi Rames 2003
