Alanya 2010
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| Alanya | M265 | Abeking & Rasmussen, Lemwerder, Germany | 6.11.2000 | 21.3.2003 | 26.7.2005 | in service (2019) | |
| Amasra | M266 | Taşkizak NSY, Istanbul | 25.7.2001 | 10.5.2004 | 26.7.2005 | in service (2019) | |
| Ayvalık | M267 | Taşkizak NSY, Istanbul | 25.7.2002 | 26.7.2005 | 22.6.2007 | in service (2019) | |
| Akçakoca | M268 | Taşkizak NSY, Istanbul | 24.7.2003 | 27.9.2006 | 17.9.2007 | in service (2019) | |
| Anamur | M269 | Taşkizak NSY, Istanbul | 1.9.2004 | 17.9.2007 | 10.10.2008 | in service (2019) | |
| Akçay | M270 | Taşkizak NSY, Istanbul | 26.7.2005 | 27.9.2008 | 15.12.2009 | in service (2019) |
|
Displacement standard, t |
500 |
|
Displacement full, t |
715 |
|
Length, m |
51.0 pp 54.5 oa |
|
Breadth, m |
9.5 wl 9.70 oa |
|
Draught, m |
2.60 hull 3.20 propellers |
|
No of shafts |
2 Voith-Schneider cycloidal propellers |
|
Machinery |
2 MTU 8V396 TE84K diesels |
|
Power, h. p. |
3000 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2400(10) |
|
Armament |
1 x 1 - 30/82 OTO-Breda 563-0005, 2 x 1 - 12.7/90, 60 mines, 2x PAP-104 Mk 5 USV, Oropesa mechanical minesweeping gear, decompression chamber, 4 divers |
|
Electronic equipment |
type 1007 radar, MFCS e/o system, type 2093 sonar, DR2000 ECM suite, Nautis 3 CCS |
|
Complement |
53 |
Project history: Lürssen Werft/Abeking & Rasmussen design, a variant of the German Navy's Type 332, was selected in 1999. Nonmagnetic steel-hull construction. Shock mountings are provided for virtually every piece of equipment and for all crew seats. A Haux portable divers' decompression chamber is also carried.
Modernizations: None.
Naval service: No significant events.

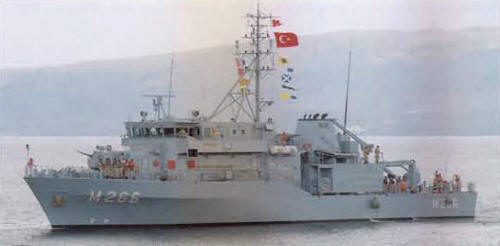

Amasra 2007
