Names |
P561 كوكب [Kawkab] P562 ثعبان [Thoaban] P563 بانياس [Baniyas] |
|
Builders |
Keith Nelson, Bembridge, UK: P561-563 |
|
Completed |
1969: P561-563 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1995: P561-563 |
|
Displacement standard, t |
32 |
|
Displacement full, t |
38 |
|
Length, m |
15.8 pp 17.5 oa |
|
Breadth, m |
4.72 |
|
Draught, m |
1.37 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar diesels |
|
Power, h. p. |
750 |
|
Max speed, kts |
19 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
445(15) |
|
Armament |
2 x 1 - 20/80 A41A |
|
Electronic equipment |
Decca RM916 radar |
|
Complement |
11 |
Project history: Glasse fibre-hulled boats of Abu Dhabi Marine Police, transferred to Marine Poilce of UAE in July 1977.
Modernizations: None.
Naval service: No significant events.

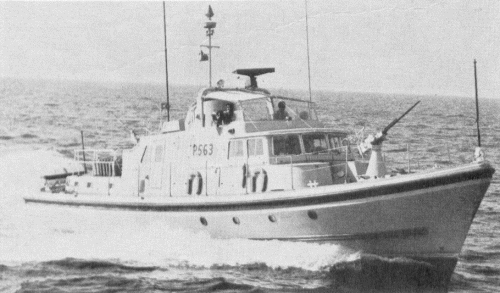

Baniyas 1976
