| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| L65 | ADSB, Massafah, Abu Dhabi | 2003 | in service (2020) | ||||
| L66 | ADSB, Massafah, Abu Dhabi | 2004 | in service (2020) | ||||
| زرقه [Zarkoh] | L67 | ADSB, Massafah, Abu Dhabi | 2004 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
850 |
|
Length, m |
55.0 pp 64.0 oa |
|
Breadth, m |
12.0 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3508 diesels |
|
Power, h. p. |
1810 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000 |
|
Armament |
2 x 1 - 12.7/90 |
| Military load | 240 t cargo, 56 troops |
|
Electronic equipment |
Simrad RA-53C radar |
|
Complement |
19 |
Project history: Bow ramp (6.4m length, 60t capacity), 7.5t crane. Modification of L61 design
Modernizations: 2012, Zarkoh: + helicopter deck
Naval service: No significant events.

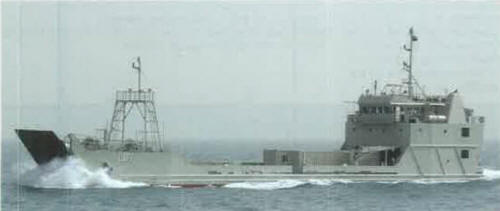

Zarkoh 2008
© Ivan Gogin, 2020
