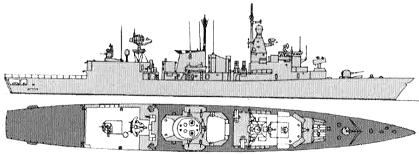

Abu Dhabi 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| أبو ظبي [Abu Dhabi] (ex-Abraham Crijnssen) | F01 | 357 | KM De Schelde, Vlissingen, Netherlands | 25.10.1978 | 16.5.1981 | 6.1.1983 // 31.10.1997 | stricken 2008 |
| الإميرة [Al Emirat] (ex-Piet Hein) | F02 | 354 | KM De Schelde, Vlissingen, Netherlands | 28.4.1977 | 3.6.1978 | 14.4.1981 // 29.6.1998 | stricken 2007 |
|
Displacement standard, t |
3000 |
|
Displacement full, t |
3800 |
|
Length, m |
121.8 pp 130.2 oa |
|
Breadth, m |
14.4 |
|
Draught, m |
4.40 hull 6.00 propellers |
|
No of shafts |
2 |
|
Machinery |
COGOG: 2 Rolls-Royce Olympus TM-3B gas turbines / 2 Rolls-Royce Tyne RM-1C gas turbines |
|
Power, h. p. |
51600 / 9800 |
|
Max speed, kts |
30 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
4700(16) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84A/C), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 1 x 1 - 76/62 OTO Melara Compact, 1 x 1 - 30/77 Goalkeeper, 2 x 1 - 20/70 Mk 10, 4 - 324 Mk 32 mod. 9 TT (Mk 46 mod. 5), 2 helicopters (AS-565 Panther) |
|
Electronic equipment |
Scout, ZW-06, LW-08, WM-25, STIR-18, Goalkeeper radars, SQS-505 sonar, Sphinx, Ramses ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25A Nixie torpedo decoy, SEWACO II CCS |
|
Complement |
140 |
Project history: Former Dutch frigates of Kortenaer-class.
Modernizations: None.
Naval service: No significant events.

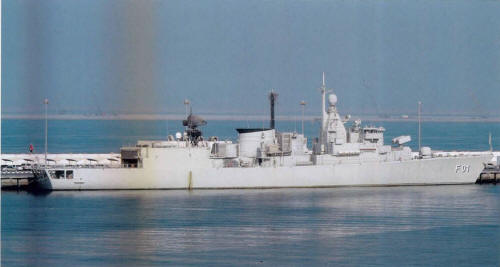

Abu Dhabi 2007
