| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| الجافا [Al Gaffa] | D1051 | Cresitalia, Ameglia, Italy | 7/1987 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
100 |
|
Length, m |
31.4 |
|
Breadth, m |
6.90 |
|
Draught, m |
1.20 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 12V396 TB93 diesels |
|
Power, h. p. |
3950 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
430(18) |
|
Armament |
decompression chamber |
|
Electronic equipment |
radar |
|
Complement |
6 + 6 divers |
Project history: Crestitalia MV100 design, modified Alcide Pedretti class. Used mostly for mine clearance.
Modernizations: None.
Naval service: No significant events.

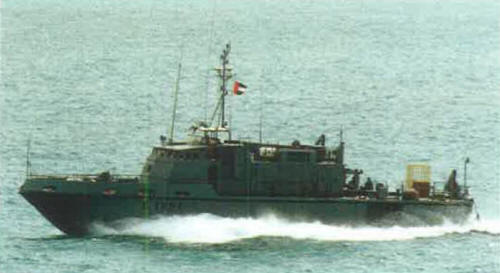

Al Gaffa 1997
© Ivan Gogin, 2020
