Gay Viking 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| MGB502 (ex-MTB502), 1945- MGB2002 | Camper & Nicholson, Gosport | 2.1941 | sunk 12.5.1945 | ||||
| MGB503 (ex-MTB503), 1945- MGB2003 | Camper & Nicholson, Gosport | 2.1941 | stricken 1945/47 | ||||
| Hopewell (ex-MGB504, ex-MTB504), 1944- MGB504, 1945- MGB2004 | Camper & Nicholson, Gosport | 2.1941 | stricken 1945/47 | ||||
| Nonsuch (ex-MGB505, ex-MTB505), 1944- MGB505, 1945- MGB2005 | Camper & Nicholson, Gosport | 2.1941 | stricken 1945/47 | ||||
| Gay Viking (ex-MGB506, ex-MTB506) | Camper & Nicholson, Gosport | 2.1941 | sunk 1944 | ||||
| Gay Corsair (ex-MGB507, ex-MTB507), 1944 - MGB507, 1945- MGB2007 | Camper & Nicholson, Gosport | 2.1941 | sunk 22.5.1945 | ||||
| Master Standfast (ex-MGB508, ex-MTB508) | Camper & Nicholson, Gosport | 2.1941 | sunk 1943 | ||||
| MGB509 (ex-MTB509), 1945- MGB2009, 1947- P5559 | Camper & Nicholson, Gosport | 2.1941 | test ship 1945, stricken 1948 |
|
Displacement standard, t |
86.5 |
|
Displacement full, t |
102.5 |
|
Length, m |
35.7 |
|
Breadth, m |
5.82 |
|
Draught, m |
1.31 deep load |
|
No of shafts |
3 |
|
Machinery |
MGB502 - 508: 3 Paxman diesels MGB509: 3 Packard petrol engines |
|
Power, h. p. |
MGB502 - 508: 3000 MGB509: 3750 |
|
Max speed, kts |
MGB502, 503: 28 MGB509: 31 blockade runners: 22 loaded |
|
Fuel, t |
MGB502 - 508: diesel oil 22700 l MGB509: petrol 22700 l |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 57/43 6pdr 7cwt QF Mk II, 1 x 1 - 40/39 2pdr QF Mk VIII, 1 x 2 - 20/70 Oerlikon Mk II/IV, 2 x 2 - 12.7/62, 2 x 2 - 7.7/94, 4 DC MGB509: 2 x 1 - 57/43 6pdr 7cwt QF Mk II, 1 x 2 - 20/70 Oerlikon Mk II/IV, 2 x 2 - 12.7/62, 2 x 2 - 7.7/94, 2 DC blockade runners: 1 x 2 - 20/70 Oerlikon Mk II/IV, 2 x 2 - 7.7/94 |
| Military load | blockade runners: 45t of cargo |
|
Complement |
21 |
Project history: A series of 8 boats was built by order of Turkey, but confiscated by Admiralty. 5 boats were rebuilt as blockade-runners for export of nickel ore from ports of Sweden and served under a merchant flag. Only MGB502, 503 and 509 were completed as MGBs.
Modernizations: 1942-1943, most: + type 286PU radar
1943-1944, most survived: - type 286PU radar; + type 291U or type 293 radar
1944, MGB504, 505, 507: were armed as other MGBs.
1945, MGB2009: was re-engined. 1 Packard petrol engine on center shaft was replaced by Gatric gas turbine. Engine power was 5200hp summary and maximal speed rose up to 34kts. Armament was removed.
Naval service: No significant events.

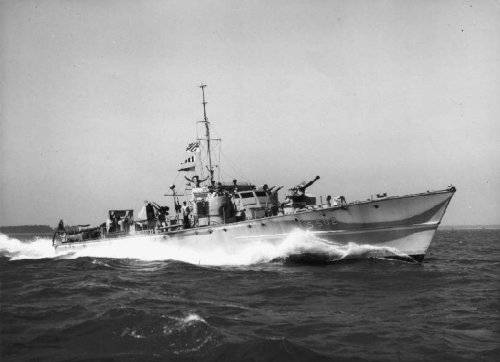

blockade runner of MGB502 class
MGB502
