Names |
107 boats, presumably HQ3800-3887 and later |
|
Builders |
Sewart Seacraft, Berwick, USA: 107 boats |
|
Commissioned |
1965-1967 // 1968-1970: 107 boats |
|
Losses |
unknown 107 boats (to North Vietnam 1975) |
|
Transfers |
none |
|
Discarding |
unknown |
|
Displacement standard, t |
|
|
Displacement full, t |
23 |
|
Length, m |
15.3 |
|
Breadth, m |
4.00 |
|
Draught, m |
1.07 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors diesels |
|
Power, h. p. |
960 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 2 - 12.7/90, 1 x (1 - 81/12 M29 mortar + 1 - 12.7/90) |
| Electronic equipment | radar |
|
Complement |
6 |
Project history: All-metal inshore patrol craft (PCF).
Modernizations: None.
Naval service: No significant events.

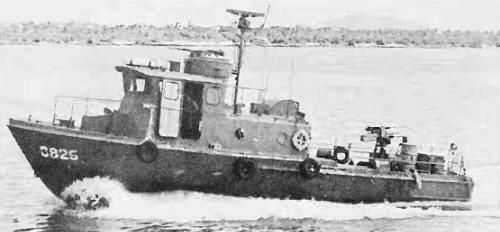

HQ3825 1970
