M117 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| - | M117 | Yugoslavia | 1966 | deleted 1990-93 | |||
| - | M118 | Yugoslavia | 1966-68 | deleted 1990-93 | |||
| Маун [Maun] | M119 | Yugoslavia | 1966-68 | deleted 1980 | |||
| Граjац [Grayats] | M120 | Yugoslavia | 1966-68 | deleted 1990-93 | |||
| Градац [Gradats] | M121 | Yugoslavia | 1966-68 | deleted 1990-93 | |||
| Ирет [Iret] | M122 | Yugoslavia | 1968 | deleted 1990-93 |
|
Displacement standard, t |
120 |
|
Displacement full, t |
131 |
|
Length, m |
30.0 |
|
Breadth, m |
5.50 |
|
Draught, m |
1.50 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors diesels |
|
Power, h. p. |
1000 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 40/60 Mk 3, 1 x 2 - 12.7/90, mechanical minesweeping gear |
|
Electronic equipment |
Decca 45 radar |
|
Complement |
25 |
Project history: Yugoslav design of inshore minesweeper, used mainly for patrol duties.
Modernizations: None.
Naval service: No significant events.

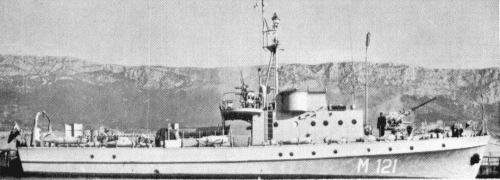

Gradats 1968
